更新VirtualBox に Debian8 を新規インストール†
VirtualBox の作成†
必要なパッケージなどを洗い出すため、まっさらから始めてみます。
ビルドに linux の開発環境が必要なので、Windows 10 64bit 上の Oracle VM VirtualBox に Debian8 (Jessie) をインストールします。
どうやら Zynq 用の arm バイナリをコンパイルするには 32 ビットライブラリが必要なので、 コンパイル環境も 32 ビットのほうが都合が良いようです。
VirtualBox マネージャの [新規] から、Debian8new という 32bit Debian の VM を作成します。
- メモリ4G
- VDI形式の仮想ハードディスク可変型20G
としました。
インストールディスクのダウンロード&マウント†
https://www.debian.org/CD/netinst/
の i386 というリンクから、debian-8.7.1-i386-netinst.iso をダウンロード。
VirtualBox "Debian8new" を右クリックし、[設定] から [ストレージ] の [光学ディスクファイルを選択...] で上記 .iso ファイルをマウント
ネットワークの設定†
ホスト PC の Windows10 と、VirtualBox 内の Debian8 との間のネットワーク通信のための ネットワークアダプタを追加します。
起動&インストール†
- [Install]
- Select Language => [Japanese]
- 場所の選択 => [日本]
- キーボードの設定 => [日本語]
- ネットワークの設定
- プライマリアダプタ => [eth0] (NATアダプタ)
- ホスト名 => [debian8new]
- ドメイン名 => []
- root のパスワード => [********]
- 新しいユーザー
- 本名 => [Osamu Takeuchi]
- ユーザ名 => [osamu]
- パスワード => [********]
- パーティショニング => [ディスク全体を使う] - [return] x 3 - [はい]
- アーカイブミラー => [日本]-[ftp.tsukuba.wide.ad.jp]-[]
- パッケージ利用調査に参加しますか => [はい]
- ソフトウェアの選択 => [SSHサーバ + 標準システムユーティリティ]
- GRUB ブートローダのインストール => [はい]-[/dev/sda]
- インストールの完了
デスクトップ環境は入れませんでした。

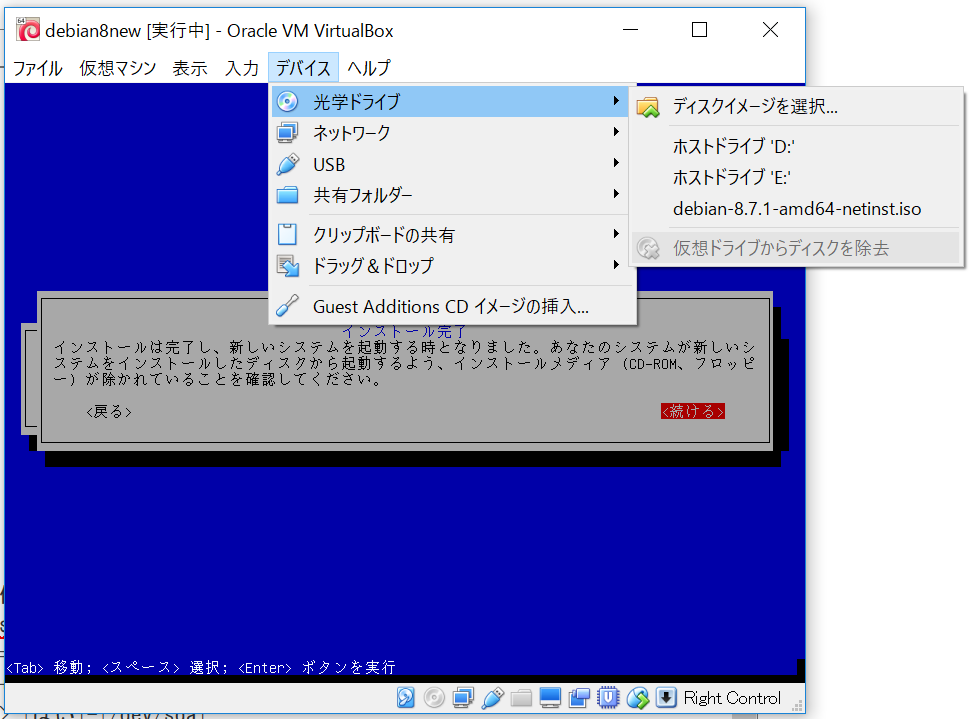

インストールディスクがアンマウントされていることを確認して続行すると再起動されます。
ログイン&必須パッケージのインストール†
etckeeper, sudo, jed†
自動再起動後、コンソールからログインできることを確認し、
- /etc フォルダのバージョン管理をするため etckeeper を入れます。
- 設定ファイルの編集用に sudo および jed エディタを入れます。
- sudo グループに自分を追加します
LANG:console $ export LANG=C $ su Password: (rootパスワードを入力) # export LANG=C # apt install etckeeper The following extra packages will be installed: git git-man liberror-perl rsync Suggested packages: sudo git-daemon-run git-daemon-sysvinit git-doc git-el git-email git-gui gitk gitweb git-arch git-cvs git-mediawiki git-svn The following NEW packages will be installed: etckeeper git git-man liberror-perl rsync 0 upgraded, 5 newly installed, 0 to remove and 0 not upgraded. Need to get 5065 kB of archives. After this operation, 26.7 MB of additional disk space will be used. Do you want to continue? [Y/n] ... # apt install sudo jed The following extra packages will be installed: jed-common libonig2 libslang2-modules slsh Suggested packages: gpm The following NEW packages will be installed: jed jed-common libonig2 libslang2-modules slsh sudo 0 upgraded, 6 newly installed, 0 to remove and 0 not upgraded. Need to get 1892 kB of archives. After this operation, 5984 kB of additional disk space will be used. Do you want to continue? [Y/n] ... # adduser osamu sudo Adding user `osamu' to group `sudo' ... Adding user osamu to group sudo Done # exit $ sudo echo ok We trust you have received the usual lecture from the local System Administrator. It usually boils down to these three things: #1) Respect the privacy of others. #2) Think before you type. #3) With great power comes great responsibility. [sudo] password for osamu: osamu is not in the sudoers file. This incident will be reported. $ groups osamu cdrom floppy audio dip video plugdev netdev bluetooth $ groups osamu osamu: osamu cdrom floppy sudo audio dip video plugdev netdev bluetooth $ exit
一旦ログインしなおさないと、グループ設定は反映されないみたい。
sshd on eth1†
以下、再ログイン後、
LANG:console $ export LANG=C $ groups osamu cdrom floppy sudo audio dip video plugdev netdev bluetooth $ sudo ifconfig [sudo] password for osamu: eth0 ... ... lo ... ... $ sudo jed /etc/network/interfaces + allow-hotplug eth1 + iface eth1_inet dhcp $ sudo service networking restart $ sudo service networking restart # なぜか2回必要? $ sudo ifconfig eth1 eth1 ... inet addr:192.168.56.103 ...
これで 192.168.56.103 に ssh 接続が可能になった
以下、PuTTY で ssh 接続して続行する。
クロスコンパイル環境の整備†
ツールのインストール†
http://blog.kmckk.com/archives/4777624.html を見ながら
LANG:console ### 基本的な開発環境(git と make など) $ sudo apt-get install git-core build-essential ### make menuconfig のため $ sudo apt-get install ncurses-dev ### uImage を作成するため $ sudo apt-get install u-boot-tools
arm アーキテクチャの確認†
https://www.debian.org/releases/stable/armel/release-notes/ch-whats-new.ja.html
- ARM EABI ('armel')
- ARMv7 (EABI 浮動小数点ハードウェア ABI, 'armhf')
https://japan.xilinx.com/support/documentation/data_sheets/j_ds190-Zynq-7000-Overview.pdf
*Zynq‐7000 All Programmable SoC
- ARM Cortex ‐ A9 ベース
-- ARMv7-A アーキテクチャ
-- 単精度および倍精度のベクター浮動小数点ユニット (VFPU)
実機の gcc バージョンを確認†
z-turn 付属の SD カードから立ち上げて、
# gcc -v Using built-in specs. COLLECT_GCC=gcc COLLECT_LTO_WRAPPER=/usr/lib/gcc/arm-linux-gnueabihf/4.6/lto-wrapper Target: arm-linux-gnueabihf Configured with: ../src/configure -v --with-pkgversion='Ubuntu/Linaro 4.6.3-1ubuntu5' --with-bugurl=file:///usr/share/doc/gcc-4.6/README.Bugs --enable-languages=c,c++,fortran,objc,obj-c++ --prefix=/usr --program-suffix=-4.6 --enable-shared --enable-linker-build-id --with-system-zlib --libexecdir=/usr/lib --without-included-gettext --enable-threads=posix --with-gxx-include-dir=/usr/include/c++/4.6 --libdir=/usr/lib --enable-nls --with-sysroot=/ --enable-clocale=gnu --enable-libstdcxx-debug --enable-libstdcxx-time=yes --enable-gnu-unique-object --enable-plugin --enable-objc-gc --enable-multilib --disable-sjlj-exceptions --with-arch=armv7-a --with-float=hard --with-fpu=vfpv3-d16 --with-mode=thumb --disable-werror --enable-checking=release --build=arm-linux-gnueabihf --host=arm-linux-gnueabihf --target=arm-linux-gnueabihf Thread model: posix gcc version 4.6.3 (Ubuntu/Linaro 4.6.3-1ubuntu5) $ uname -a Linux localhost.localdomain 3.15.0-xilinx #9 SMP PREEMPT Tue May 26 17:26:14 CST 2015 armv7l armv7l armv7l GNU/Linux
armv7l とか armv7-a というアーキテクチャはどこで定義されているのだろう?
gcc は arm-linux-gnueabihf-gcc なので、armhf のものを使えばいいようだ。
emdebian.org を apt のソースに指定†
以下、http://qiita.com/myahal@github/items/fc332e53713df244518f を見ながら
LANG:console $ jed /etc/apt/sources.list.d/crosstools.list + deb http://emdebian.org/tools/debian/ jessie main $ curl http://emdebian.org/tools/debian/emdebian-toolchain-archive.key | sudo apt-key add - -bash: curl: コマンドが見つかりません gpg: 有効なOpenPGPデータが見つかりません。 $ sudo apt install curl $ curl http://emdebian.org/tools/debian/emdebian-toolchain-archive.key | sudo apt-key add -
crossbuild-essential-armhf をインストール†
LANG:console $ sudo dpkg --add-architecture armhf $ sudo apt-get update $ sudo apt-get install crossbuild-essential-armhf 提案パッケージ: binutils-doc gcc-4.9-locales binutils-multiarch gcc-4.9-doc libstdc++6-4.9-dbg:armhf libgcc1-dbg:armhf libgomp1-dbg:armhf libitm1-dbg:armhf libatomic1-dbg:armhf libasan1-dbg:armhf liblsan0-dbg:armhf libtsan0-dbg:armhf libubsan0-dbg:armhf libcilkrts5-dbg:armhf libquadmath-dbg:armhf glibc-doc:armhf locales:armhf manpages-dev:armhf libstdc++-4.9-doc:armhf libyaml-shell-perl $ arm-linux-gnueabihf-gcc --version arm-linux-gnueabihf-gcc ( 4.9.2-10) 4.9.2 Copyright (C) 2014 Free Software Foundation, Inc. This is free software; see the source for copying conditions. There is NO warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
適当なソースをコンパイル†
LANG:console $ mkdir arm-hello $ cd arm-hello $ cat > hello.c #include <stdio.h> void main() { puts("Hello world!"); } $ arm-linux-gnueabihf-gcc hello.c -o hello $ file hello a.out: ELF 32-bit LSB executable, ARM, EABI5 version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux-armhf.so.3, for GNU/Linux 2.6.32, BuildID[sha1]=94a2aefddb7ebe7a244405372693ca3758564470, not stripped
エミュレータで動かす†
LANG:console $ sudo apt-get install qemu-user-static $ qemu-arm-static ./hello Hello world!
実機で動かす†
SD カードにコピーして z-turn board で動かす
LANG:console # lsblk NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT mmcblk0 179:0 0 7.4G 0 disk |-mmcblk0p1 179:1 0 64M 0 part `-mmcblk0p2 179:2 0 7.4G 0 part / mtdblock0 31:0 0 512K 0 disk mtdblock1 31:1 0 128K 0 disk mtdblock2 31:2 0 4.4M 0 disk mtdblock3 31:3 0 4.5M 0 disk mtdblock4 31:4 0 64K 0 disk mtdblock5 31:5 0 6M 0 disk mtdblock6 31:6 0 448K 0 disk # mount /dev/mmcblk0p1 /media/BOOT media-BOOT.mount # cp -r /media/BOOT/arm-hello . # cd arm-hello/ # file hello hello: ELF 32-bit LSB executable, ARM, EABI5 version 1 (SYSV), dynamically linked (uses shared libs), for GNU/Linux 2.6.32, BuildID[sha1]=94a2aefddb7ebe7a244405372693ca3758564470, not stripped # ./hello Hello world!
ちゃんと動いた!
Xilinx Linux for Zynq AP SoC のビルド†
最新ソースファイルから uImage をビルドする。
http://blog.kmckk.com/archives/4777624.html を見ながら
LANG:console $ git clone https://github.com/Xilinx/linux-xlnx.git $ git checkout xilinx-v2016.4 $ export CROSS_COMPILE=arm-linux-gnueabihf- $ make ARCH=arm xilinx_zynq_defconfig $ make ARCH=arm menuconfig メニュー形式でカーネル設定を変更可能 Device Drivers ---> Userspace I/O drivers ---> <*> Userspace I/O platform driver with generic IRQ handling <*> Xilinx AXI Performance Monitor driver を確認(初めからマークされているはず) $ make ARCH=arm UIMAGE_LOADADDR=0x8000 uImage ... LD arch/arm/boot/compressed/vmlinux OBJCOPY arch/arm/boot/zImage Kernel: arch/arm/boot/zImage is ready Kernel: arch/arm/boot/Image is ready Kernel: arch/arm/boot/zImage is ready UIMAGE arch/arm/boot/uImage Image Name: Linux-4.6.0-xilinx Created: Thu Feb 2 02:05:34 2017 Image Type: ARM Linux Kernel Image (uncompressed) Data Size: 3848368 Bytes = 3758.17 kB = 3.67 MB Load Address: 00008000 Entry Point: 00008000 Image arch/arm/boot/uImage is ready $ ls -l arch/arm/boot/uImage -rw-r--r-- 1 osamu osamu 3848432 2月 2 02:05 arch/arm/boot/uImage $
modules もビルドする
LANG:console $ make ARCH=arm modules ... Building modules, stage 2. MODPOST 23 modules CC crypto/drbg.mod.o LD [M] crypto/drbg.ko CC crypto/echainiv.mod.o LD [M] crypto/echainiv.ko CC crypto/hmac.mod.o LD [M] crypto/hmac.ko CC crypto/jitterentropy_rng.mod.o LD [M] crypto/jitterentropy_rng.ko CC crypto/sha256_generic.mod.o LD [M] crypto/sha256_generic.ko CC drivers/remoteproc/mb_remoteproc.mod.o LD [M] drivers/remoteproc/mb_remoteproc.ko CC drivers/remoteproc/remoteproc.mod.o LD [M] drivers/remoteproc/remoteproc.ko CC drivers/remoteproc/zynq_remoteproc.mod.o LD [M] drivers/remoteproc/zynq_remoteproc.ko CC drivers/rpmsg/virtio_rpmsg_bus.mod.o LD [M] drivers/rpmsg/virtio_rpmsg_bus.ko CC drivers/usb/gadget/function/usb_f_mass_storage.mod.o LD [M] drivers/usb/gadget/function/usb_f_mass_storage.ko CC drivers/usb/gadget/function/usb_f_ss_lb.mod.o LD [M] drivers/usb/gadget/function/usb_f_ss_lb.ko CC drivers/usb/gadget/legacy/g_zero.mod.o LD [M] drivers/usb/gadget/legacy/g_zero.ko CC drivers/usb/gadget/libcomposite.mod.o LD [M] drivers/usb/gadget/libcomposite.ko CC drivers/virtio/virtio.mod.o LD [M] drivers/virtio/virtio.ko CC drivers/virtio/virtio_ring.mod.o LD [M] drivers/virtio/virtio_ring.ko CC fs/configfs/configfs.mod.o LD [M] fs/configfs/configfs.ko CC net/802/p8022.mod.o LD [M] net/802/p8022.ko CC net/802/psnap.mod.o LD [M] net/802/psnap.ko CC net/802/stp.mod.o LD [M] net/802/stp.ko CC net/8021q/8021q.mod.o LD [M] net/8021q/8021q.ko CC net/bridge/bridge.mod.o LD [M] net/bridge/bridge.ko CC net/ipv4/ipip.mod.o LD [M] net/ipv4/ipip.ko CC net/llc/llc.mod.o LD [M] net/llc/llc.ko $ ls modules* modules.builtin modules.order
uImage は BOOT 領域にコピーすればいいとして、modules はどうすれば?
実機の構成を見てみる。
LANG:console # ls /lib/modules/3.15.0-xilinx/ kernel/ modules.builtin modules.dep.bin modules.softdep modules.alias modules.builtin.bin modules.devname modules.symbols modules.alias.bin modules.dep modules.order modules.symbols.bin # ls /lib/modules/3.15.0-xilinx/kernel/ crypto/ drivers/ net/ #
真似すればいいのかしら?
USB3.0 の SD カードリーダーに VirtualBox からアクセスできるようにするために、 https://www.virtualbox.org/wiki/Downloads から落とした VirtualBox Extension Pack をダブルクリックし、VirtualBox で USB3.0 が使えるようにした。
VirtualBox の USB 設定でカードリーダーを割り当てる。
LANG:console $ lsblk NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT sda 8:0 0 20G 0 disk ├─sda1 8:1 0 19.1G 0 part / ├─sda2 8:2 0 1K 0 part └─sda5 8:5 0 880M 0 part [SWAP] sdf 8:80 1 7.4G 0 disk ├─sdf1 8:81 1 64M 0 part └─sdf2 8:82 1 7.4G 0 part sr0 11:0 1 1024M 0 rom $ sudo mount /dev/sdf1 /mnt $ ls /mnt 7z020.bit System Volume Information devicetree.dtb uImage 7z020b.bit arm-hello original uramdisk.image.gz BOOT.bin devicetree-wo-uio.dtb uEnv.txt $ sudo mv /mnt/uImage /mnt/uImage-orig $ sudo cp arch/arm/boot/uImage /mnt $ sudo umount /mnt $ sudo mount /dev/sdf2 /mnt $ ls -l /mnt/lib/modules 合計 8 drwxrwxr-x 3 1002 1002 4096 5月 26 2015 3.15.0-xilinx drwxr-xr-x 4 root root 4096 1月 26 19:37 3.2.0-1498-omap4 $ sudo mkdir /mnt/lib/modules/4.6.0-xilinx $ cd linux-xlnx/ $ ls modules* modules.builtin modules.order $ sudo cp modules* /mnt/lib/modules/4.6.0-xilinx $ sudo mkdir /mnt/lib/modules/4.6.0-xilinx/kernel $ sudo cp --parents */*.ko */*/*.ko */*/*/*.ko /mnt/lib/modules/4.6.0-xilinx/kernel/ $ sudo umount /mnt
LANG:console ... reading uImage 3848432 bytes read in 245 ms (15 MiB/s) reading devicetree.dtb 11172 bytes read in 15 ms (726.6 KiB/s) ## Booting kernel from Legacy Image at 02080000 ... Image Name: Linux-4.6.0-xilinx Image Type: ARM Linux Kernel Image (uncompressed) Data Size: 3848368 Bytes = 3.7 MiB Load Address: 00008000 Entry Point: 00008000 Verifying Checksum ... OK ## Flattened Device Tree blob at 02000000 Booting using the fdt blob at 0x2000000 Loading Kernel Image ... OK Loading Device Tree to 1fffa000, end 1ffffba3 ... OK Starting kernel ...
ここで止まってしまった。
そんなに単純な話ではないみたい。
z-turn board に付属の uImage だと、
LANG:console ... reading uImage 3886152 bytes read in 257 ms (14.4 MiB/s) reading devicetree.dtb 11172 bytes read in 15 ms (726.6 KiB/s) ## Booting kernel from Legacy Image at 02080000 ... Image Name: Linux-3.15.0-xilinx Image Type: ARM Linux Kernel Image (uncompressed) Data Size: 3886088 Bytes = 3.7 MiB Load Address: 00008000 Entry Point: 00008000 Verifying Checksum ... OK ## Flattened Device Tree blob at 02000000 Booting using the fdt blob at 0x2000000 Loading Kernel Image ... OK Loading Device Tree to 1fffa000, end 1ffffba3 ... OK Starting kernel ... Booting Linux on physical CPU 0x0 Linux version 3.15.0-xilinx (tom@dev-server) (gcc version 4.6.1 (Sourcery CodeBench Lite 2011.09-50) ) #9 SMP PREEMPT Tue May 26 17:26:14 CST 2015 CPU: ARMv7 Processor [413fc090] revision 0 (ARMv7), cr=18c5387d CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache Machine model: MYIR Z-turn Development Board cma: CMA: reserved 128 MiB at 27800000 Memory policy: Data cache writealloc PERCPU: Embedded 8 pages/cpu @e719c000 s9088 r8192 d15488 u32768 Built 1 zonelists in Zone order, mobility grouping on. Total pages: 195088
のようになる。
ちゃんと調べなきゃ。
u-boot のビルド†
を見ながら
https://github.com/Xilinx/u-boot-xlnx
LANG:console $ git clone https://github.com/Xilinx/u-boot-xlnx.git Cloning into 'u-boot-xlnx'... remote: Counting objects: 455718, done. remote: Total 455718 (delta 0), reused 0 (delta 0), pack-reused 455718 Receiving objects: 100% (455718/455718), 114.43 MiB | 5.26 MiB/s, done. Resolving deltas: 100% (364615/364615), done. Checking connectivity... done. $ ls u-boot-xlnx/ $ cd u-boot-xlnx $ git tag .. xilinx-v2016.2 xilinx-v2016.3 xilinx-v2016.4 xilinx_microblaze xilinx_pele_v2010.09 xilinx_pre_little_endian zynq-beta-v2.2 $ git checkout xilinx-v2016.4 Note: checking out 'xilinx-v2016.4'. You are in 'detached HEAD' state. You can look around, make experimental changes and commit them, and you can discard any commits you make in this state without impacting any branches by performing another checkout. If you want to create a new branch to retain commits you create, you may do so (now or later) by using -b with the checkout command again. Example: git checkout -b new_branch_name HEAD is now at 0b94ce5... ARM64: zynqmp: usb1 on zcu100 is not peripheral $ export CROSS_COMPILE=arm-linux-gnueabihf-
まだ途中。
